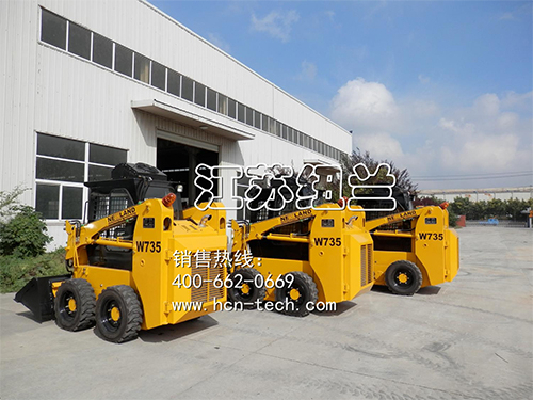

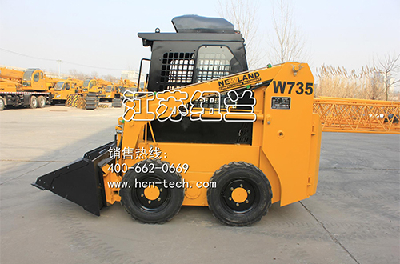

Skid Steer Loader W735

Skid Steer Loader W735

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: china ports
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2006-06-12
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  china
  • Brand Name:  HCN
  • Model Number:  W735

Engines: perkins engines imported, and with Perkins engine manufacturers to form partnerships for many years, ensure that the machines capable of performing various work environment.
Form: all structural parts are self-R& design, manufacture, pleasing in appearance, durability, hydraulic tank, fuel tank and chassis integration, in the structure to fully maximize the performance of the machine, arm and body to work the perfect combination.
Operation system: the operating system can choose the advanced mechanical control and the pilot control lever .Mechanical manipulation of clear structure and easy maintenance. Pilot control lever controls the various functions of the machine placed on the handle, together with various types of instrument parameters, can greatly improve operator comfort.
Leveling system: adopts imported machinery or hydraulic leveling system; leveling system, not only to improve to become more effective, but also increased the use of safety coefficient.
Cab: rops/fops、big space、cab design features a full range of vision. Body seat safety bar can accommodate larger operators, and can serve as handrails, comfort and support to achieve precise control operation. Cab enclosure with a roof, rear window, side windows. Cab air-conditioning system can be powerful in the most hot, cool and comfortable work environment.
Maintenance: Just open the cover after the tail, on the cover, set off a cab, will be able to complete all inspections including engines, and filling work, and to maintain the filter and battery. in the maintenance of Safeway and maintenance without having to raise stand-arm, which can effective use of maintenance time, rather than wasted on maintenance and maintenance of open and close to the po

  • Place of Origin:  china
  • Brand Name:  HCN
  • Model Number:  W735

 Type

W735

 Rated power(HP)

33/2800

Displacement(L)

1.5

Performance parameter

Operating weight(Kg)

1970

Rated load(Kg)

500

Maximum load(Kg)

1170

Walking action system

 Transmission form

The chain drive

Wheel/track

Wheel 10.5-15

Number of driving wheel

4x4

 Maximum walking speed (km/h)

11

Hydraulic system

Mode of operation

mechanical

 System pressure (MPa)

17.5

Standard output flow (L/min)

45

Output maximum flow (L/min)

NA

 Electrical system

Voltage(V)

DC12

 Fuel charge


Hydraulic oil tank (L)

50

Fuel tank (L)

60
