- Place of Origin: china
- Brand Name: HCN
- Model Number: W720 T

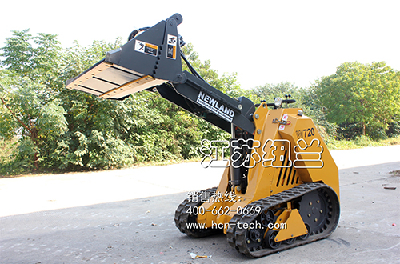

◇Small body,light weight,small turning radius,multi-usage,widely used in farms,pasture,foreign family and factories:handling、material cleaning、loading and unloading,drilling、push the snow、the broken.
◇Adopt imported engine,strong power,power output,optional HONDA、B&S、KOHLER three types of engines.
◇Double ways of output,mechanical operation,also can choose hydraulic servo handle.
◇With standard person handwriting do engineering births,also can choose solid types ,grassland sets,narrow births,can also be supplied with caterpillar vehicles.
◇In-situ 360°sliding steering, small in turning radius, drive steady.
◇Can be fully open cover, simple quick change device, open buyers and realize the change after machine.
◇Drive system used high strength chain, long life、easy maintenance, easy to adjust and maintenance, which can guarantee the chain transmission efficiency and longer from practical life. Services are secure, tracking service.
- Place of Origin: china
- Brand Name: HCN
- Model Number: W720 T
Type | W720T |
Engine type | B&S 3864 |
Rated power(hp/rpm) | 23/3600 |
Performance parameters | |
Rated load(kg) | 860 |
Rated loading capacity | 200 |
Maximum load(kg) | 450 |
Drive system | |
Transmission form | Motor Drive |
Tire/track | Crawler 280 |
Driving wheel | --- |
Maximum walking speed of (km/h) | 10 |
Hydraulic system | |
Operation mode | Mechanical |
System pressure(MPa) | 17 |
Output standard flow rata(L/min) | 25 |
The maximum output flow(L/min) | NA |
Electrical system | |
Voltage(V) | DC12 |
Gas volume | |
Hydraulic tank(L) | 27 |
Fuel tank(L) | 21 |
Outline dimensions | |
Total hight(mm) | 1320 |
Total length(without bucket)(mm) | 1750 |
Total width | 920 |
Operation parameters(with bucket) | |
Operating height(mm) | 2160 |
To bucket pin height(mm) | 1810 |
Level bucket bottom height(mm) | 1730 |
With standard bucket length(mm) | 2205 |
The maximum height on the flip angle(°) | 25 |
The maximum height of the discharging angle(°) | 30 |
Discharge height(mm) | 1412 |
Unloading distance(mm) | 530 |
Wheelbase(mm) | 652 |
Tread(mm) | 640 |
Ground clearance(mm) | 140 |
Angle of departure(°) | 15 |
Bucket width(mm) | 820 |
Bucket capacity(m³) | 0.12 |
